Cleanup plan changes at waste burning area

Northwest tip of Alameda Point. Waste burning area is immediately to the right of trees. Port of Oakland is in background.

It was the 1950s, before the environmental movement of the 1970s and the laws that followed in its wake. Hauling waste materials out to the western shoreline of Alameda Point to be burned and bulldozed into the Bay was not considered irresponsible. The “Burn Area,” as it is called, lies next to the shore near the entrance to the Oakland Estuary.

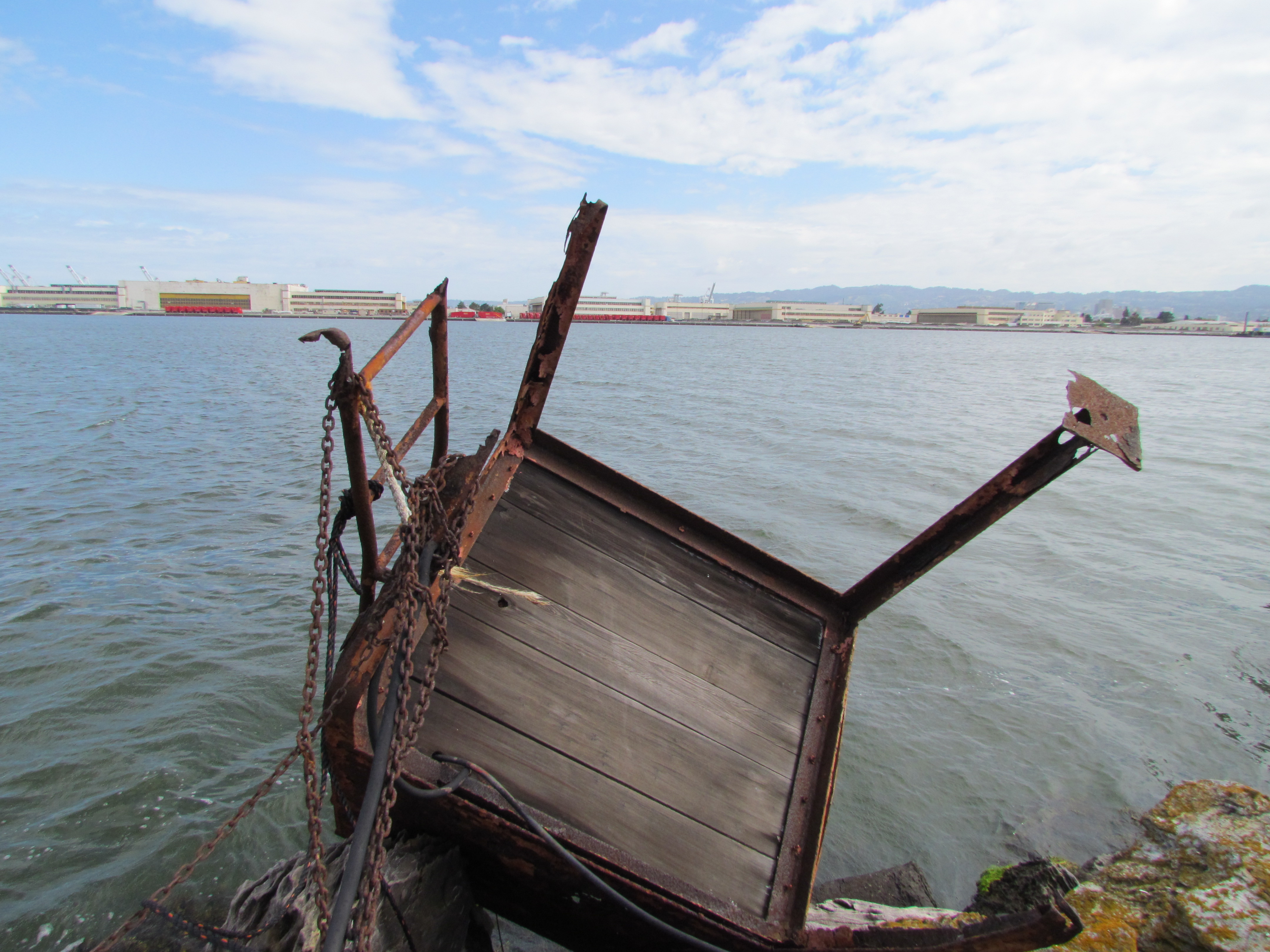

Burn Area on Site 1. San Francisco Bay to the left. Oakland Estuary to the north.

By 2009, the Navy was ready with a plan to finally remove several acres of contaminated Burn Area soil and haul it away. In 2010, testing by the cleanup contractor preparing to do the work, however, revealed additional burn residue that extends over a longer area and under the shoreline slope. The new information triggered a complete re-evaluation of the plan.

Excavation and removal at the greater depth and under the shore would drive the cost up from the original $5 million to $40 million. Fortunately for the Navy, a new and lower cost option became available just as the Navy and regulatory agencies were gathering more soil and groundwater data and discussing options.

In 2011, the US Army Corps of Engineers approved a shoreline steel containment system called an “open cell vertical confined disposal facility.” Primarily used for harbor and waterway reinforcement and as a containment area for dredge sediment, the system is also suitable for permanently isolating and containing the toxic burn material along several hundred feet of Bay shoreline. This option will cost $13 million.

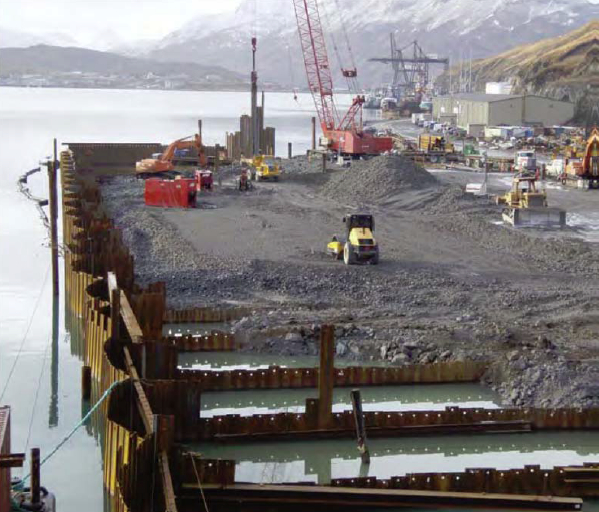

Open cell sheet pile containment system under construction at Dutch Harbor, Alaska. Photo source: US Army Corps of Engineers 2011 report. — Open cell sheet pile containment system under construction at Dutch Harbor, Alaska. The same system is proposed for the Alameda Point Burn Area. Photo source: US Army Corps of Engineers 2011 report.

The Navy calls the open cell system a “waste isolation bulkhead.” It consists of a wall of interlocked steel plates embedded in the earth along the shoreline. Perpendicular steel walls extend toward the shoreline to form cells, or compartments, and provide anchorage. The absence of welding to hold the system together allows it to flex without failing and eliminates the problem of welds corroding.

Tests around the Burn Area were conducted in 2010, 2011, and 2012 to determine if any of the chemicals in the burn residue were entering San Francisco Bay. None were found to be entering the Bay. Nevertheless, the Burn Area’s proximity to the Bay requires that it either be removed or permanently isolated.

The Burn Area is located on the 37-acre Site 1 cleanup area. The site includes about a half dozen unlined underground pits that were used for waste disposal and are now partially covered by runway pavement.

Site 1 landfill map. Area 1b is the Burn Area as it was originally configured. Click to enlarge.

Cleanup of a solvent plume on Site 1 that posed a potential threat to the Bay took place last year. Previous cleanup on the site included removal of debris and soil contaminated by radium-226 used in painting luminescent aircraft dials.

When the Navy is finished with the Burn Area bulkhead barrier, the Burn Area will again be tested for radiological contamination. All 37 acres of Site 1 will then be covered by at least two feet of clean soil and seeded with native grasses.

Site 1 will be available for passive recreational use as part of the proposed 147-acre regional park along the northern shoreline. Site 1 will be part of the final conveyance of land to the city slated for 2019. The VA’s property is adjacent and to the south and east.

The Navy’s project manager along with the cleanup contractor for Site 1 will be present at a special public meeting to answer questions and take comments on the new proposed plan for the Burn Area. The meeting is on April 9 at the Alameda Main Library, 1550 Oak Street, from 6:30 pm to 8:00 pm.

Originally published in the Alameda Sun.

Further Reading on the Navy’s Burn Area Study

The Navy’s recently-completed soil and groundwater study for the Burn Area is called a Focused Feasibility Study (FFS) and is located on the state Envirostor website.

The FFS is very large and is divided into parts. Recommended parts to look at first:

Part 1, Part 3 (cool maps), Part 4 (mostly raw data, but has trench photos), and Part 8 (descriptive letters from PND Engineers that own the patent on the open cell system, and all the comments by the regulatory agencies and the responses to comments.) Part 5 has a lot of technical data and description of the groundwater model in relation to the Bay.

Reference material on the open cell barrier proposed for the Burn Area:

US Army Corps of Engineers 2011 report on the use of the Open Cell Sheet Pile Containment System for contaminated dredge material.

Overview of the Open Cell Confinement Disposal Facility system by PND Engineers.

2012 report to the Alaska Legislature on the Open Cell system.

Image highlights from the Focused Feasibility Study for the Site 1 Burn Area

Click on images to enlarge.

Gold area is part of the newly discovered burn material. This relatively thin area will be dug up and placed in the main burn area behind the bulkhead barrier.

Geologic model cross section – hand drawn

Geologic cross section. Charcoal area is the burn material.

Charcoal-colored area is the burn residue and debris.

Sheet pile bulkhead drawing for containing the Burn Area at Site 1.

California Brown Pelicans roosting at Alameda Point

Breakwater Island at Alameda Point — L-shaped Breakwater Island – largest brown pelican roosting site in San Francisco Bay – with San Francisco in background. Breakwater rocks in foreground extend back to Encinal Boat Ramp. Former Naval Air Station is located to the right.

The successful recovery effort for the once endangered California brown pelican is evident every summer through fall on Breakwater Island, an area which forms the beginning of the Alameda Point Channel leading to the ship docks and Seaplane Lagoon. The breakwater is a wall of boulders built up from the Bay floor to reduce wave action in the harbor.

California brown pelicans were listed as an endangered species in 1970. The pesticide DDT was identified as the cause of their decline. It caused reproductive harm, and altered the birds’ calcium absorption, which led to thin eggshells that would break under the parents’ weight. Use of DDT was banned in the United States 1972.

A recovery effort was launched in the 1970s on Channel Islands National Park off the coast of Santa Barbara. The only breeding colonies of California brown pelicans in the western United States are within Channel Islands National Park on West Anacapa and Santa Barbara islands.

Brown pelican preening — California brown pelican preening on Breakwater Island.

In the summer and fall, the brown pelicans can range from nesting colonies in Mexico and the Channel Islands all the way up to British Columbia. Alameda Point’s Breakwater Island is the largest roosting site in San Francisco Bay. A safe, secure roosting area is essential for pelicans to rest, preen, dry their feathers, maintain body temperature, and socialize.

When the Naval Air Station was still active, the Navy enforced restrictions against boats landing on the Island and posted signs that warn against disturbing the birds. Since the base closed, there has been no one to enforce regulations against disturbing the pelicans.

California brown pelicans with mouths open — California brown pelicans relaxing on Breakwater Island on sunny fall day. Their mouth sack is the largest of any bird and is used to scoop fish when they plunge into the water.

The California Brown Pelican was removed from the Endangered Species List in 2009 after an almost 40-year recovery. There is currently no plan to look out for the welfare of these magnificent birds after the base is transferred out of Navy ownership. One way to ensure adequate protection and provide public education and appreciation of this unique ecological asset is to have it be part of an “Alameda Point Wildlife Conservation Area.” The East Bay Regional Park District would be an excellent agency to manage it; they already have a marine conservation area at nearby Crab Cove.

Young California brown pelican with leg band.

California brown pelican — Old-timer. Brown pelicans can live to 30 years.

Close-up photos of Breakwater Island pelicans were taken in October 2012 from a kayak.

View more Breakwater Island pelican photos in the Flickr photo set.

More information is available on the Channel Islands National Park website.

This story is reprinted on the Golden Gate Audubon Society’s blog Golden Gate Birder.

Update – October 23, 2012

The brown pelican pictured above with a leg band reading “K69” was brought to the International Bird Rescue clinic in Cordelia near Fairfield, CA on July 9, 2012 in a thin and weak condition. It is less than a year old. After a one-month rehab, it was released at the Elkhorn Slough Estuarine Reserve near Watsonville on August 10. A blue band on a pelican leg means it was given a helping hand at one of the two clinics operated by International Bird Rescue – located in the San Francisco Bay Area and Los Angeles. Some of their released pelicans have been spotted in Oregon and Washington. If you see a pelican with a blue leg band, they’d like to hear about it.

Ending threat of solvents in groundwater leaching into San Francisco Bay

Site 1 at the northwestern tip of Alameda Point was used as the principal disposal area for all waste generated at Naval Air Station-Alameda from 1943 to 1956. This disposal area, which was once part of the Bay, was created by sinking pontoons and barges in the Bay and backfilling with dredge soil.

Disposal of cleaning solvents and petroleum products at one unlined pit within the landfill resulted in a groundwater plume that poses a threat of leaching into San Francisco Bay today.

In the 1990s the Navy installed an underground barrier system, called a funnel and gate permeable reactive barrier, to stem the flow of contaminants into the Bay. It was not a permanent solution. In July of this year the permanent solution began with the injection of neutralizing chemicals into the plume.

Protecting marine life

San Francisco Bay at Alameda Point western shoreline where threat of solvent leaching exists.

Most cleanup activities around the base are aimed at eliminating direct health risks to humans, such as from soil or from vapors that could enter a building. In a few cases, the cleanup is focused first on direct impacts to marine life such as fish, which could in turn cause health problems for people who eat them.

The cleanup effort at the Site 1 plume is one of those cases. This effort will keep toxins — solvents, petroleum products, and metals — from ever leaching into the Bay, being ingested by fish, and then consumed by humans. The effort will also reduce unacceptable levels of vapors that are escaping directly above the plume. The future use of the site will be restricted to open space recreational.

The process

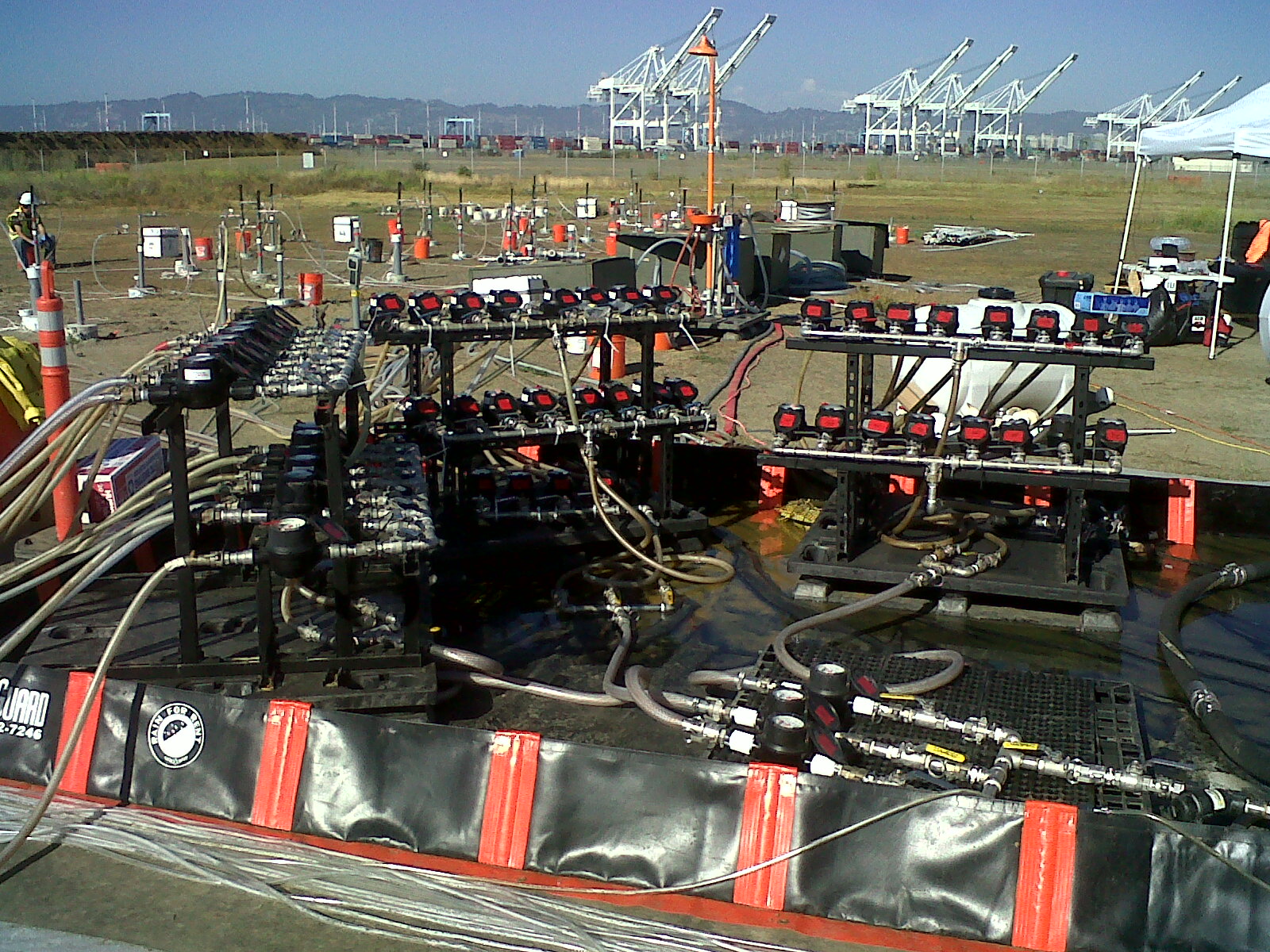

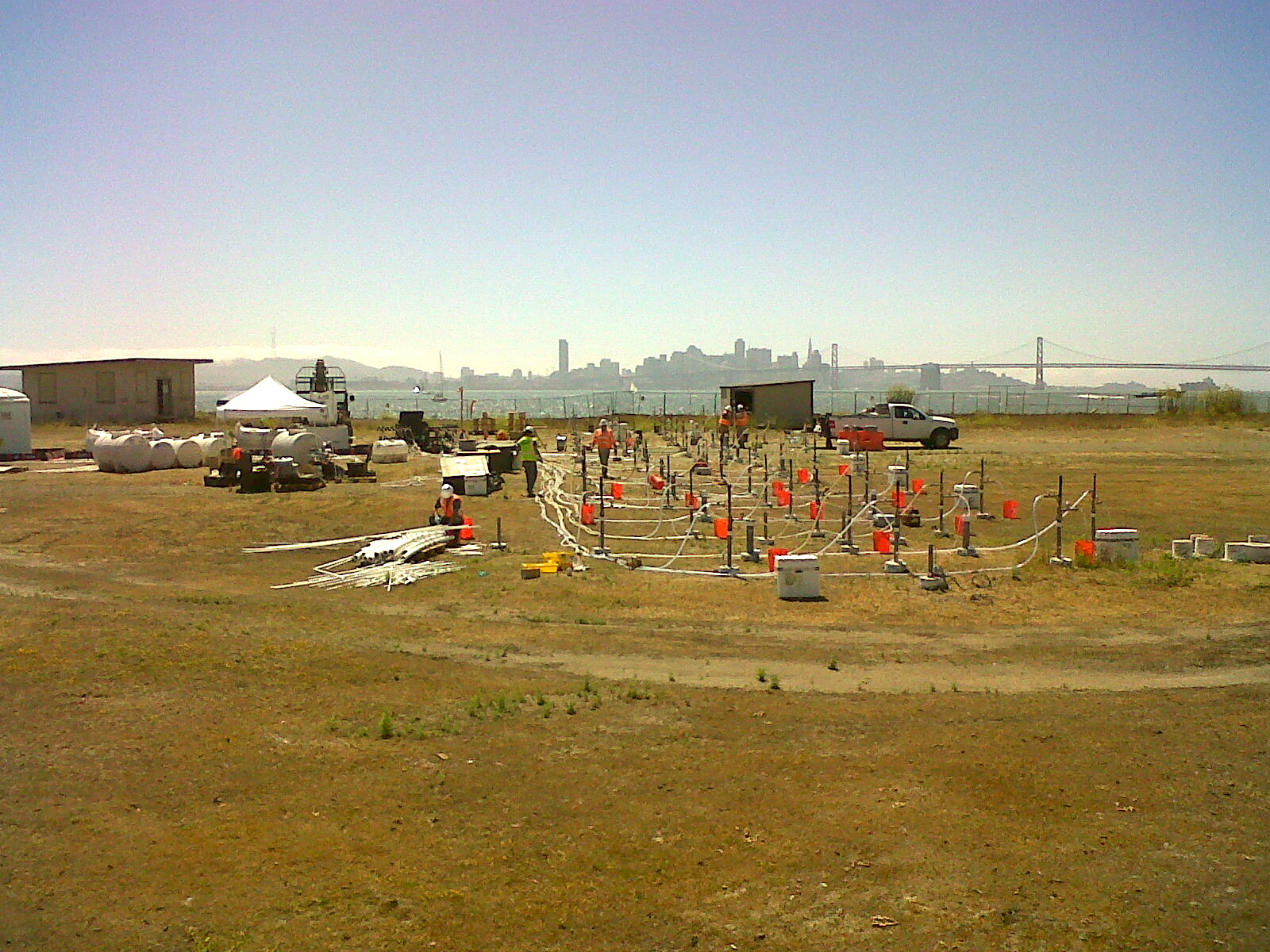

Manifold system for chemical injections — July 2012 – Manifold system of hose lines that send oxidant chemicals to individual wells that go into the underground plume contamination area. Navy photo.

The chemical injection process, called In Situ Chemical Oxidation (ISCO), is accomplished by injecting oxidants (catalyzed hydrogen-peroxide and sodium persulfate) into the plume through injection wells. “These oxidants produce short-lived reactions that directly destroy the targeted contaminants,” according to the Navy. Groundwater tests will determine if further treatments are necessary.

Tanks of chemicals for neutralizing solvent plume. Shown as work area being set up in June 2012.

Treatments will continue until either the groundwater is clean enough, or the solvent and petroleum concentration has been reduced by 75%. Once they get to 75% reduction, further injections are more or less a waste of money. From then on, the contaminant concentration is low enough that the remainder will either degrade or disperse and dilute naturally without posing a risk to fish or humans. This process is called natural attenuation and is often relied upon to finish the job when the bulk of contaminants are neutralized and treatment methods no longer yield effective results.

The groundwater plume is also contaminated with metals consisting of arsenic, copper, mercury, nickel, silver, and zinc. The metals problem will, in theory, be taken care of when the solvents and petroleum products are eliminated. This will cause the chemistry of the groundwater to change, which in turn will cause the metals to no longer remain dissolved in the water. The metals will return to their solid state and remain where they are. That’s the theory.

But to make sure it’s working, there will be a long-term groundwater monitoring program to make sure the metals aren’t moving. If problems arise in the future, the Navy will have to come back and design a new remedy. The Navy is responsible for the landfill’s contents staying in place in perpetuity.

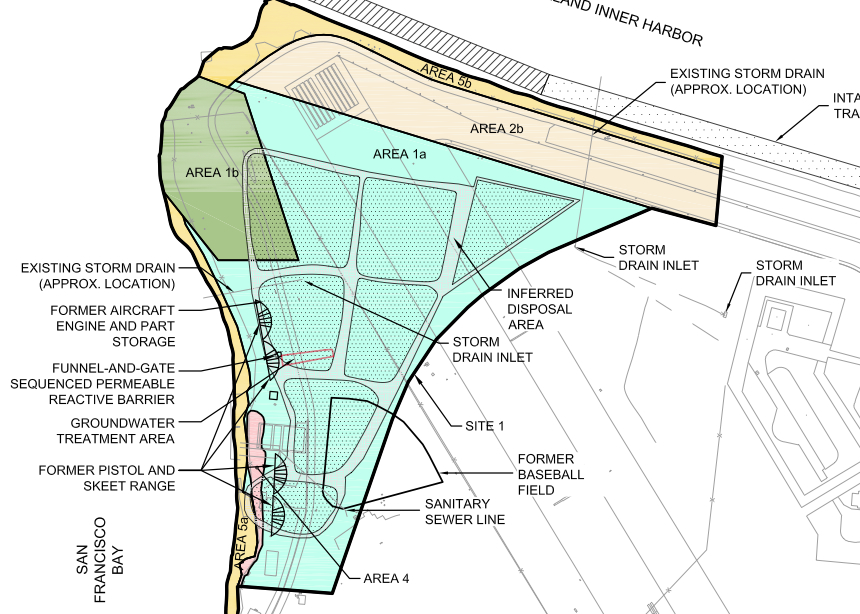

Site 1 landfill groundwater treatment area — Map of Site 1 disposal area with arrow from left indicating plume treatment area. Map also shows outlines of individual unlined pits that were used for disposal of waste. Half of the area is now covered by runway.

The Navy opted not to remove the landfill contents because of the $93 million price tag and because the risk of contaminant releases was deemed low. A new set of environmental concerns associated with digging up and hauling away a landfill was also cited during the decision process.

The groundwater plume being treated is approximately 30 feet wide by 160 feet long, and it occurs mainly between depths of 5 and 10 feet below the ground surface.

Site 1 groundwater treatment work underway in July. San Francisco in background. Navy photo.

Delay on soil cover

All of 30-acre Site 1 will eventually be covered with soil and seeded with native grasses. Work on the soil cover was delayed when the contractor discovered that the part of the landfill once used for burning waste was larger than expected. The documentation has to go back through the review process, with a work plan for the soil cover hopefully prepared and ready to implement by 2014.

Protecting the California Least Terns at the Alameda Point Wildlife Refuge

Volunteers distributing oyster shells on nesting site in April 2012

The California Least Terns are arriving back at Alameda Point’s wildlife refuge to lay their eggs and raise their young. The volunteers, who help maintain the site, and the US Fish & Wildlife Service (USFWS) biologist responsible for the tern colony, have never left. They carry out maintenance tasks during the non-nesting season – September to early April – as well as help monitor bird behavior during the nesting season.

California Least Tern, with chick under tile, at Alameda Point

The California Least Terns return to California every April from Central America. The old Navy runway area at Alameda Point is among the limited number of sites where these endangered birds come to nest. Driven to adapt to a loss of undisturbed beach habitat, they began nesting at Alameda Point decades before the Naval Air Station closed in 1997.

While Navy jets would be disturbing for humans to live next to, for the terns the movement of the jets was predictable and easy to avoid. That’s not the case on an increasing number of beach areas where people and pets can easily trample eggs in the sand and frighten the adult birds.

The Alameda Point colony is considered the most successful for this bird. It is believed that the success at Alameda Point has led to new colonies elsewhere in California.

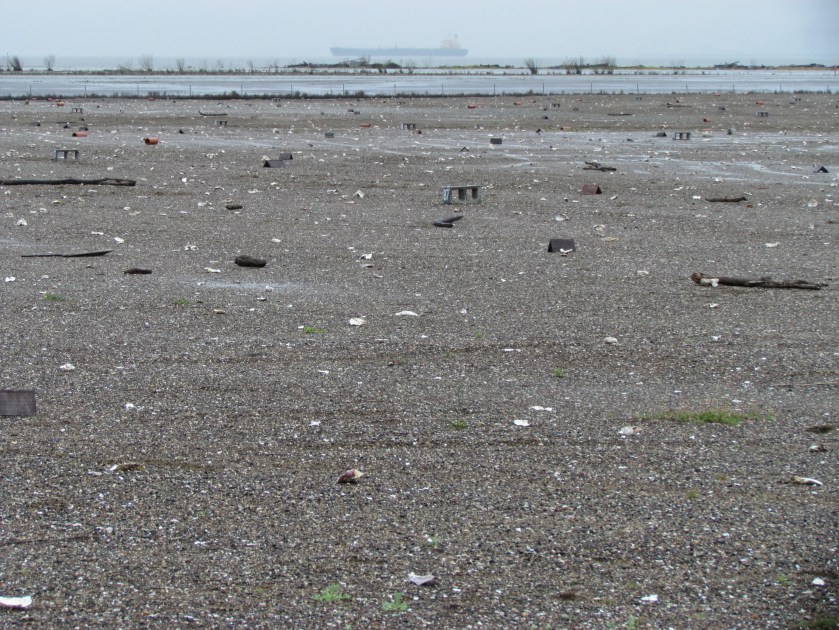

Looking south on a rainy day in April 2012 on the Alameda Point nesting site for CA Least Terns

Oyster shells on Alameda Point nesting site for CA Least Terns

Volunteers are recruited by the Friends of the Alameda Wildlife Refuge, a committee of the Golden Gate Audubon Society. Activity at the Least Tern nesting site started ramping up in January this year as it always does, with guidance from the USFWS biologist. Volunteers perform tasks such as removing weeds, repairing the mesh barrier that keeps chicks from wandering off or getting injured in the chain link fence around the nesting site, and distributing oyster shells to confuse hawks and other flying predators that often circle overhead during the nesting season.

Every year the US Fish & Wildlife Service re-positions all of the numbered cinder blocks that establish a grid pattern for recording bird behavior. The blocks, along with all the other “tern furniture” – wooden A frames and clay tile that chicks shelter under and in, oyster shells, driftwood – are gathered up and set to the side after the nesting season. This allows for easier weed control and for the sand and gravel surface to be graded.

The grid blocks are placed into position using a global positioning system for complete accuracy. When Tern Watch volunteers or the Fish & Wildlife biologist observe activity, they record the data according to a grid letter/number. Without a grid system, it would be difficult to record accurate data for hundreds of eggs and chicks, i.e., did a predator steal an egg last night, or is that the nest that had only one egg?

This year there are two training sessions for the Tern Watch program.

The public is invited to take a bus tour to the site on June 16^th. The annual event is hosted jointly by USFWS and the East Bay Regional Park District. The bus tours leave from the Crab Cove Visitors Center in Alameda. Advance registration is required and is handled through the park district. (See comment below.)

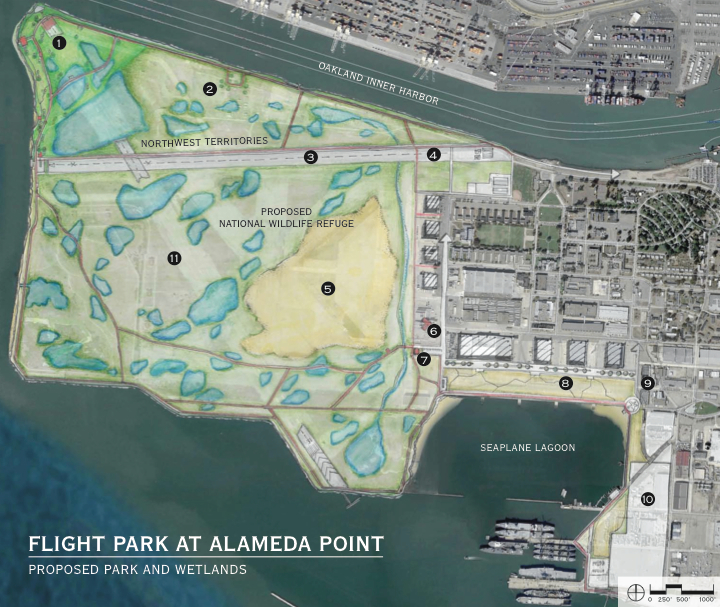

Wetlands, Trails, Natural Habitat Concept Drawings for Alameda Point

The borderless ecosystem – On September 1, 2011, Golden Gate University’s Center on Environmental Law published their proposal for a unified planning process and expansive view for open space at Alameda Point. The central theme of their effort is that the true potential for conservation at Alameda Point lies in thinking of the area as one contiguous ecosystem of land and water. In doing so, not only is there benefit to wildlife and the environment in general, there is also benefit to our efforts at economic development by making Alameda Point a highly desirable location with a signature identity – Flight Park.

Perimeter boardwalk (Bay Trail) through park

Flight Park is their suggested name for a unified open space system that would bring to mind larger-scale landmark open space systems like the Golden Gate National Recreation Area. Bringing together regional, state, and federal agencies to adopt and implement conservation efforts will be far more effective in the long run than waiting for, say, the VA to appropriate money for habitat conservation (not their core mission), or the city of Alameda getting enough attention to secure millions in wetlands monies.

Moving the VA facilities – Perhaps the most controversial proposal within the Flight Park concept is moving the proposed VA facilities off of the Wildlife Refuge to a spot further east at Alameda Point. While coming late in the process for transferring land to the VA, it is not without merit. The Golden Gate Audubon Society has long opposed the sighting of VA buildings on the Wildlife Refuge as an intrusion into the habitat of the endangered California Least Tern. The Flight Park designers see the VA buildings as a visual obstruction on an otherwise wild and open bay front parcel.

Greenspace wetlands boardwalk — Boardwalk through proposed wetlands

There is good reason for the VA to work with the City of Alameda on moving their buildings, if not their columbarium, closer to the old “Main Gate” on the north side of Alameda Point. Services will be easier to get to for veterans, and the infrastructure to their site will be less expensive. There is still time – the VA has not spent their $17 million for this year on design, and therefore they have not requested money for the project in next year’s budget proposal.

The East Bay Regional Park District has been ready and willing to take on the management of regional park facilities at Alameda Point for over a decade. In 2009 they set aside $6.5 million for Alameda Point shoreline restoration and the Bay Trail.

Existing wetlands on Northwest Territories

Wetlands Mitigation Bank – Professor Paul Kibel, co-director of the Center on Urban and Environmental Law and leader behind the Flight Park concept, argues that there is also funding potential in the creation of a Wetlands Mitigation Bank such as has been created in many California communities to accumulate funds for creating or restoring wetlands. An experienced environmental lawyer, he has offered to assist the city in any way he can in setting up such a wetlands bank. One of our first contributions would likely come from the Navy, which will owe us some wetlands due to their coming remediation plans for the Northwest Territories. Typically, two acres of wetland must be created for each single acre removed.

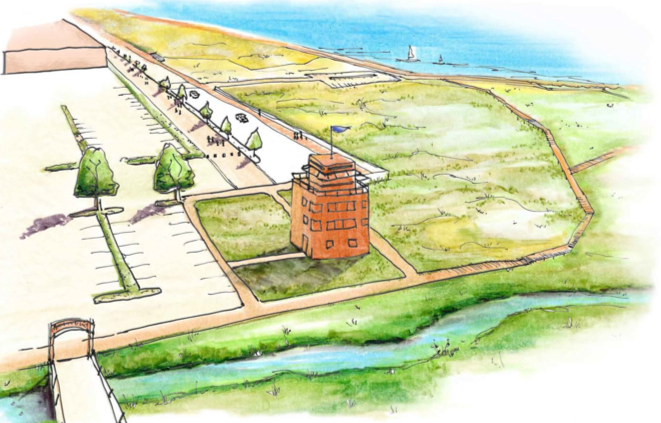

Seaplane Lagoon grassland promenade with Control Tower converted to nature observation center

In Sum – The Flight Park drawings offer an inspiring look at what could be at Alameda Point. It is a vision that merges well with recent sustainability presentations that call for diverting storm water to wetlands and marshes at Alameda Point. Urge our city council to discuss this initiative. It would build on Alameda’s reputation as a city dedicated to environmental sustainability.

CUEL Booklet on Flight Park at Alameda Point

More images in the Environmental Report’s Flickr gallery.
